Dry Milling Machine
Model: C512D Dry Milling Machine
5 Axis linkage
Auto Tool changer-10-tool capacity
8um High Accuracy
90° Milling
Auto Automatic calibration
1s Quick-change fixtures
1.8kw Spindle output power
Description

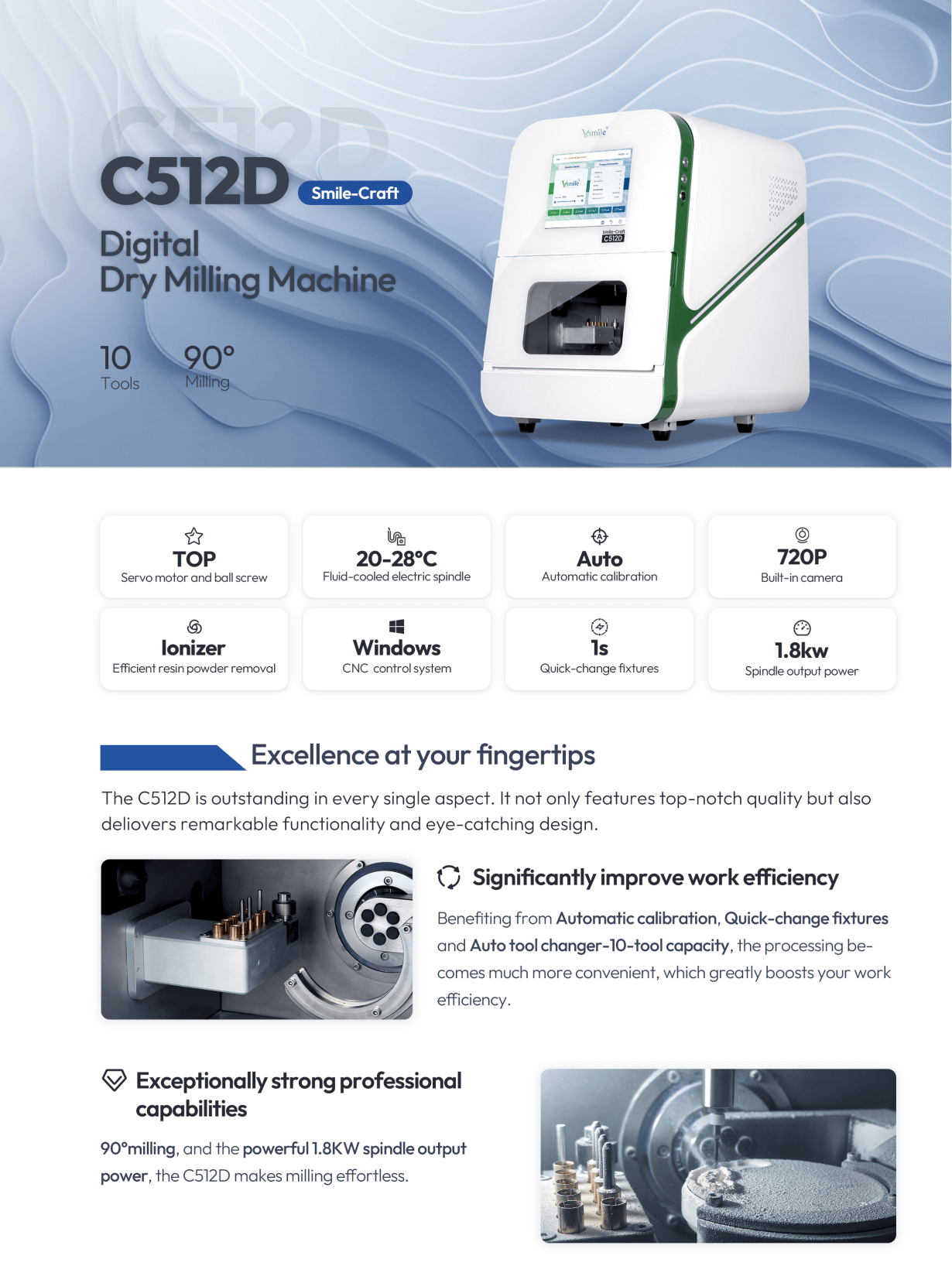

For dental laboratories, milling centers, and processing plants focused on maximizing throughput and material versatility, the Vsmile C512D Dry Milling Machine is your strategic investment. As a global leader in digital dentistry with 20+ years of dedicated expertise and a track record of supporting over 6,000 labs worldwide, Vsmile understands that profitability depends on reliable, high-speed equipment. The C512D is engineered to redefine your dry milling workflow, delivering industrial-grade performance directly to your lab bench.
| Feature | Advantage | Benefit |
| 5-Axis Simultaneous Milling | Moves the blank and tool along five independent axes for full-circumference machining. | Produce restorations with superior fit and detail, including complex undercuts and convergent areas, in one cycle. |
| High-Performance Dry Spindle | Features a powerful, precise, high-speed spindle (e.g., up to 60,000 RPM) optimized for hard materials. | Rapid, clean, and accurate milling of zirconia, significantly reducing production time and extending the life of your milling burs. |
| 12-Position Automatic Tool Changer (ATC) | Automatically manages and replaces up to 12 different tools. | Enables full overnight or weekend production cycles without requiring operator supervision, boosting lab profitability. |
| Wide Material Versatility (Dry) | Dedicated dry processing for Zirconia, PMMA, Wax, PEEK, Composite, and more. | A single machine handles the majority of your restoration types, simplifying workflow and lowering equipment overhead. |
| High Rigidity and Stability | Industrial-grade cast body construction and high-quality motion components. | Consistent, vibration-free milling ensures minimal material chipping and a perfect surface finish on every restoration. |

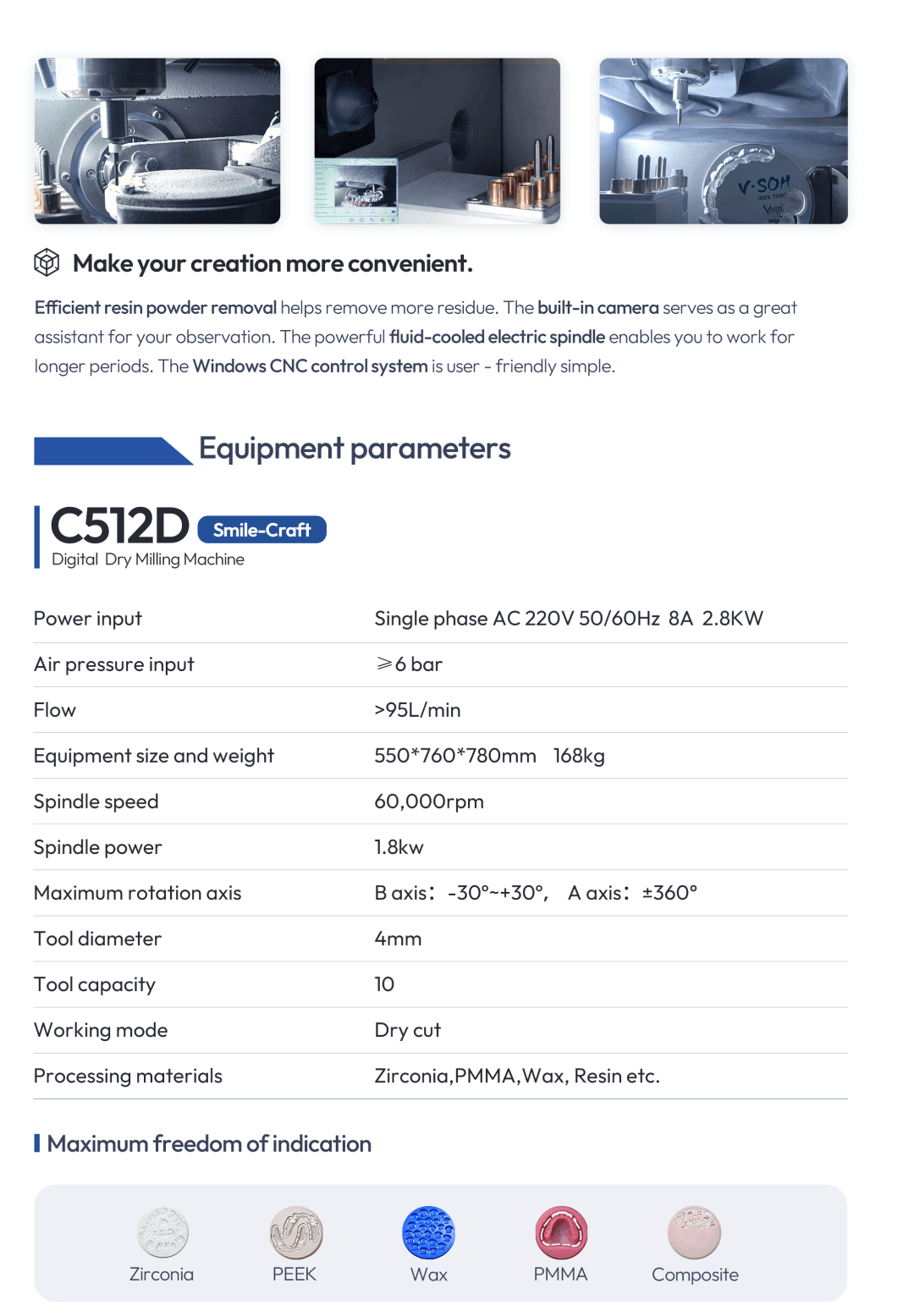

| Configuration | Standard Model | Optional Model | Top-level Model |
| Frame material | Cast-aluminum for aviation | Cast-aluminum for aviation | Cast-aluminum for aviation |
| Spindle clamping tool mode | fluid-cooled electric spindle | fluid-cooled electric spindle | fluid-cooled electric spindle |
| Spindel cooling system | Water circulation cooling system | Water circulation cooling system | Water circulation cooling system |
| Millable material | Zirconia,PMMA,PEEK,Wax | Zirconia,PMMA,PEEK,Wax | Zirconia,PMMA,PEEK,Wax |
| External dimensions D/W/H(mm) | 525/700/784 | 525/700/784 | 525/700/784 |
| Weight(kg) | 168kg | 168kg | 168kg |
| Weight(kg) for bracket(Optional) | 50kg | 50kg | 50kg |
| Axis motor technology | Digital AC Servo Motor | Digital AC Servo Motor | Digital AC Servo Motor |
| Power supply(V/A) | AC 220V 50/60 Hz | AC 220V 50/60 Hz | AC 220V 50/60 Hz |
| Power consumption(KW) | 2.8 | 2.8 | 2.8 |
| Spindle Power(KW) | 1.8 | 1.8 | 1.8 |
| Motor speed(rpm) | 60,000 | 60,000 | 60,000 |
| Compressed air connection | 6 bar 95 L/min | 6 bar 95 L/min | 6 bar 95 L/min |
| Torque(Ncm) | ≥125(D4) | ≥125(D4) | ≥125(D4) |
| Collet chuck(Ømm) | 4 | 4 | 4 |
| Axes | 5 | 5 | 5 |
| Accuracy (mm) | 0.008 | 0.008 | 0.008 |
| Rotary axis travel angle | A aixs: 360° B axis:-30°~ +30° | A aixs: 360° B axis:-30°~ +30° | A aixs: 360° B axis:-30°~ +30° |
| 90° | yes | yes | yes |
| Number of burs housed | 10 | 10 | 10 |
| CAM software | MILLBOX/WORKNC | MILLBOX/WORKNC | MILLBOX/WORKNC |
| Milling time | Zirconia ≤20min | Zirconia ≤20min | Zirconia ≤20min |
| Camera | N/A | Optional | Built-in |
| Tool capacity | 10 | 10 | 10 |
| Automatic calibration module | N/A | Optional | Built-in |
