MOLYBDENUM DISILICIDE Heating Elements For Dental Element



Vsmile heating elements is a electric heating element with outstanding properties for use at high temperatures, in air or oxygen, in cycling conditions. The maximum operating temperature is 1830°C (3330°F), and the element is suitable for furnace temperatures between 1500-1750°C (2730-3180°F) approximately The special feature of Vsmile MOSI2 heating element is the growth of the oxide layer - the glaze - is much reduced, compared to other elements. A thin oxide layer results in a much improved lifetime, because the tensions are reduced between the base material and the surrounding oxide, depending on the different thermal expansion coefficients. This is of great importance especially for elements of smaller dimensions used in cyclic conditions, where other elements may be damaged by "banding". The banding effect is when the element shatters into smaller pieces during thermal cycling. This is a result of massive stresses between the oxide and the base material, once the oxide has grown to a sufficient thickness and the strength of the oxide film exceeds that of the base material. The new properties also include better hot strength and forms stability. Vsmile heating elements therefore, can be used in horizontal applications with less deformation although it still needs to be supported



Special features



– Lower oxidation rate

– Thinner glaze layer

– Longer life at high temperatures and when cycling

– Less adhesion to fiber due to thinner glaze

– Improved form stability

– High purity

- Reduced Fe

– Standard and specially designed elements



Typical applications for Vsmile mosi2 heating element includes laboratory and high-temperature process furnaces and as a "problem solver" at high temperatures.



Regular Stock:

Ivoclar S1 Heating Element

Shenpaz SINTRA and SINTRA PLUS Heating Element

Sirona Infire HTC Speed Heating Element



Vita Zyrcomat 6000MS Heating Element

Sirona Multimat2Sinter Heating Element

Vita Zyrcomat T Heating Element

DentaStar P1 Heating Element

Nabertherm LHT 02/17LB Speed Heating Element

3M Lavatherm (Model 33500072989/00/1/00) Heating Element

Ivoclar Vivadent Sintramat Heating Element

ZIRKONZAHN 600 Heating Element

Customizable MoSi2 Heatinmg Element

MoSi2 Heating Element - High Purity MoSi2 Heating Elements, 1800 °C Moly Disilicide Heating Elements Rod.

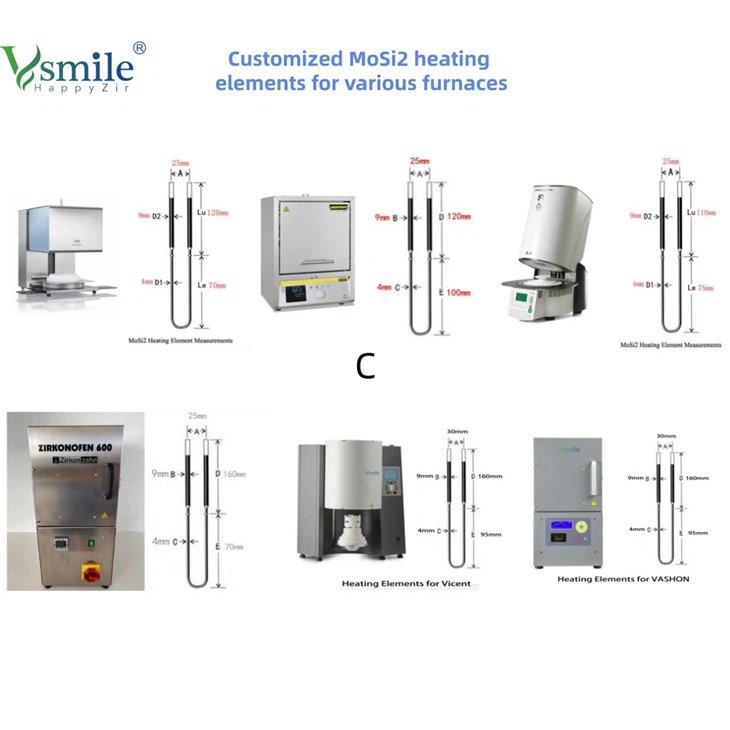

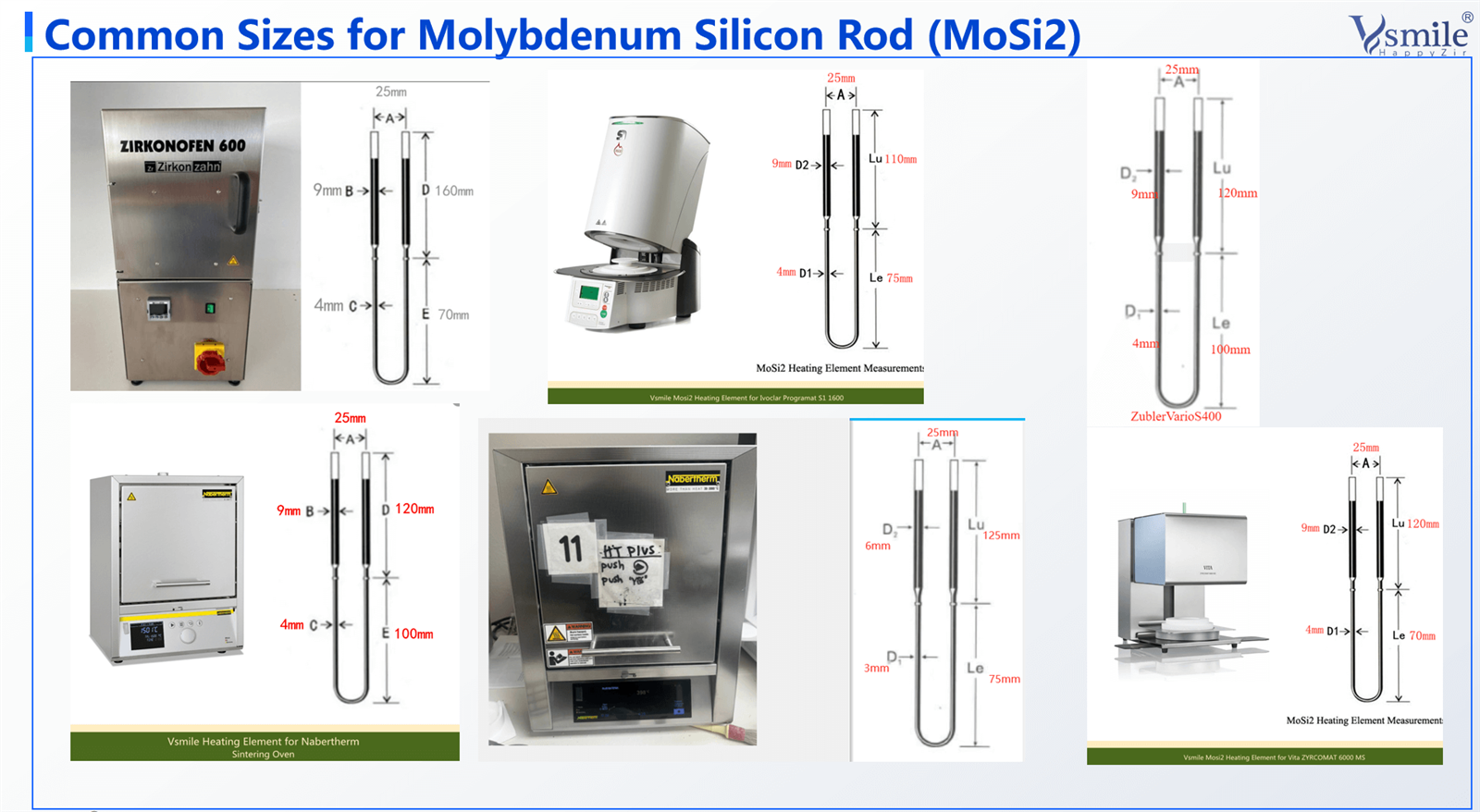

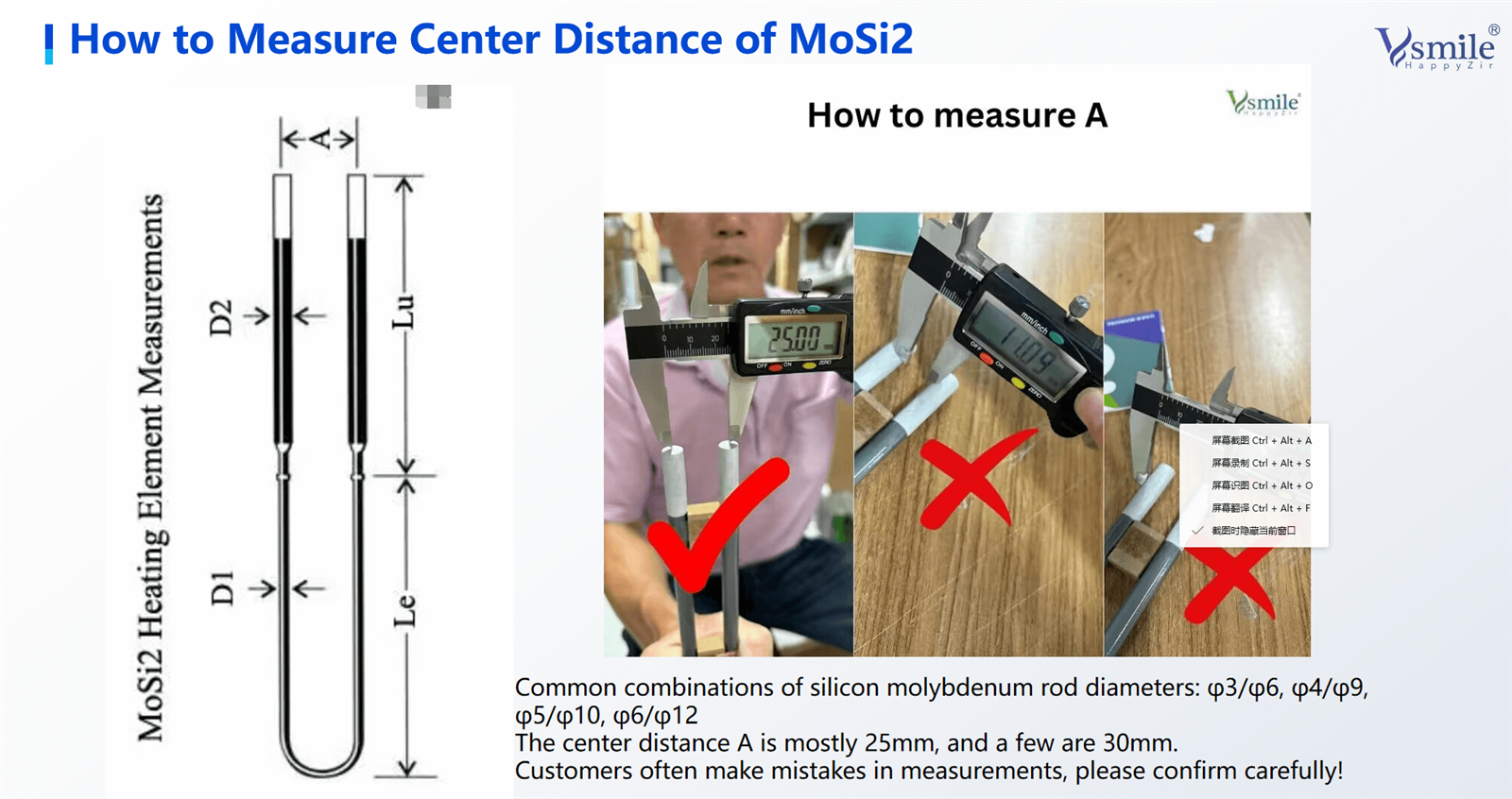

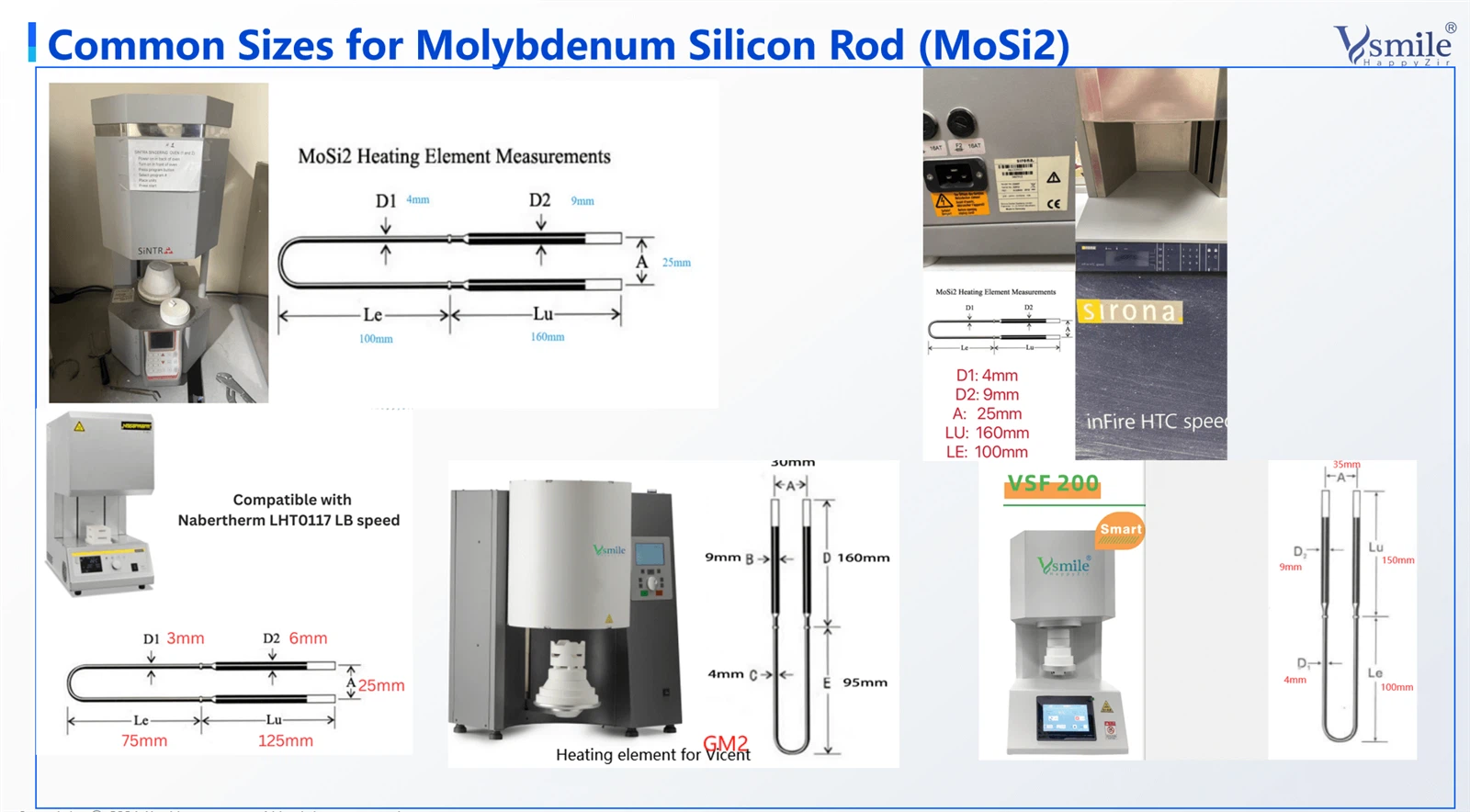

Measuring:

Please specify as: dia 6/12 X 200 X 180 X 30mm (dia d/c X Le X Lu X a mm)

D = the diameter of hot zone

C= the diameter of cold zone

Le = the length of hot zone

Lu = the length of cold zone
