Dental Cad Cam Milling Machine

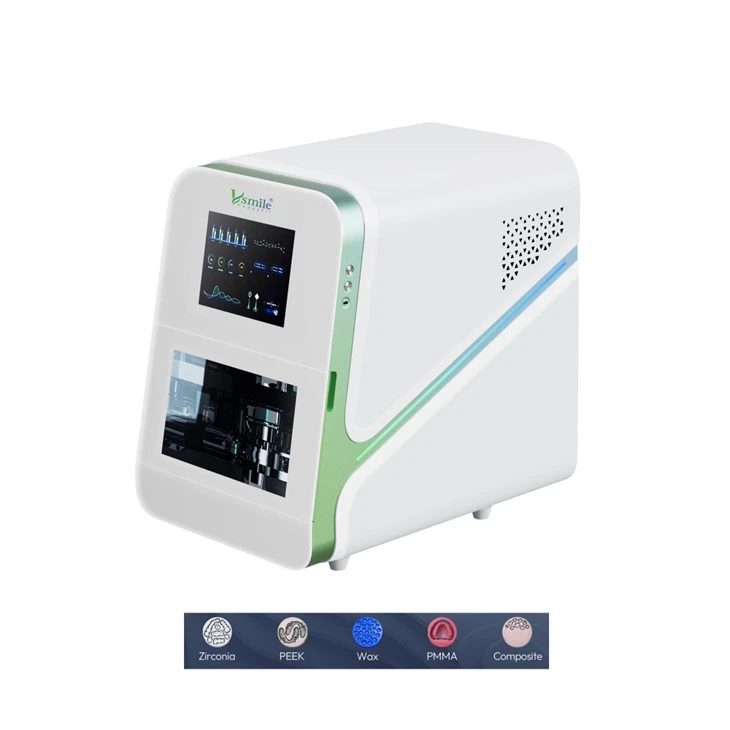

C512D Dental Cad Cam Milling Machine is a next-generation 5-axis CAD/CAM milling solution designed for precision and efficiency. Engineered specifically for zirconia, PMMA, PEEK, and wax, the C512D is built for versatility, intuitive operation, and exceptional results.
Description
C512D Dental Cad Cam Milling Machine is a dry-milling five-axis dental milling machine that can process a variety of materials, helping laboratories or clinics to complete the processing of zirconia, PMMA, PEEK, wax, composite materials and other materials.
Smile-Craft C512D Dental Cad Cam Milling Machine is a dry-cut five-axis dental milling machine that can process materials such as zirconia and resin. Its desktop design can be used in multiple scenarios such as dental clinics, laboratories, and factories.

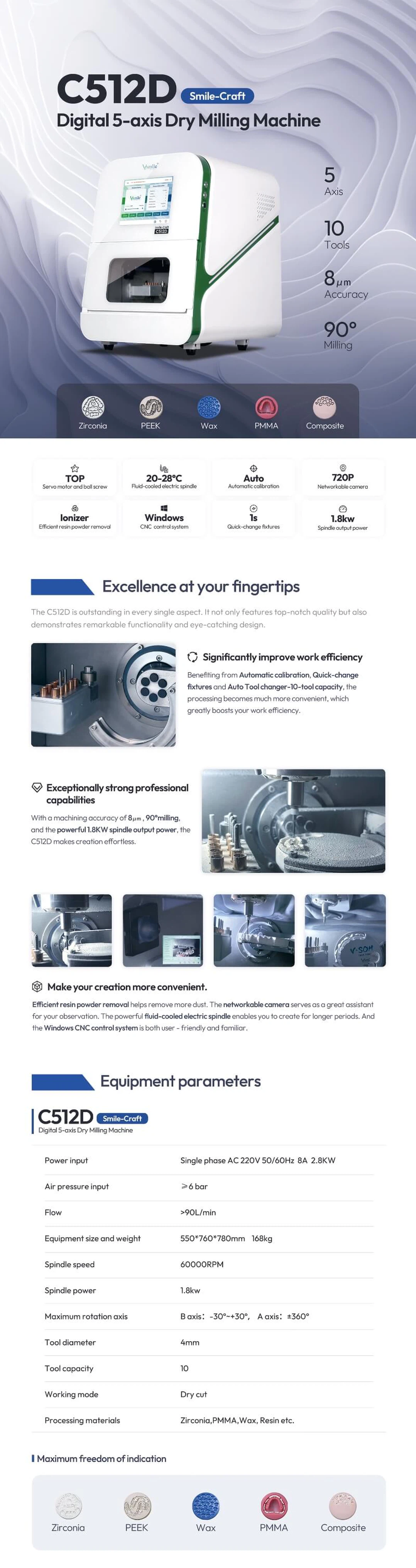

C512D Dental Cad Cam Milling Machine is equipped with a 62mm diameter spindle, a water circulation cooling device, 10 processing milling burs, and an optional zero-point quick-change fixture, which can quickly and stably complete the processing of a variety of dental materials. Specific parameters are shown in the table below.
|
Power Input |
Single phase AC 220V 50/60Hz 8A 2.8KW |
|
Air pressure input |
≥6 bar |
|
Flow |
>90L/min |
|
Equipment size and weight |
550*760*780mm 150kg |
|
Spindle speed |
60000RPM |
|
Spindle power |
1.8kw |
|
Maximum rotation axis |
B axis：-30º~+30º, A axis：±360° |
|
Maximum tool diameter |
4mm |
|
Number of tools |
10 |
|
Working Mode |
Dry Cut |
|
Processing materials |
Zirconia, resin, etc. |
